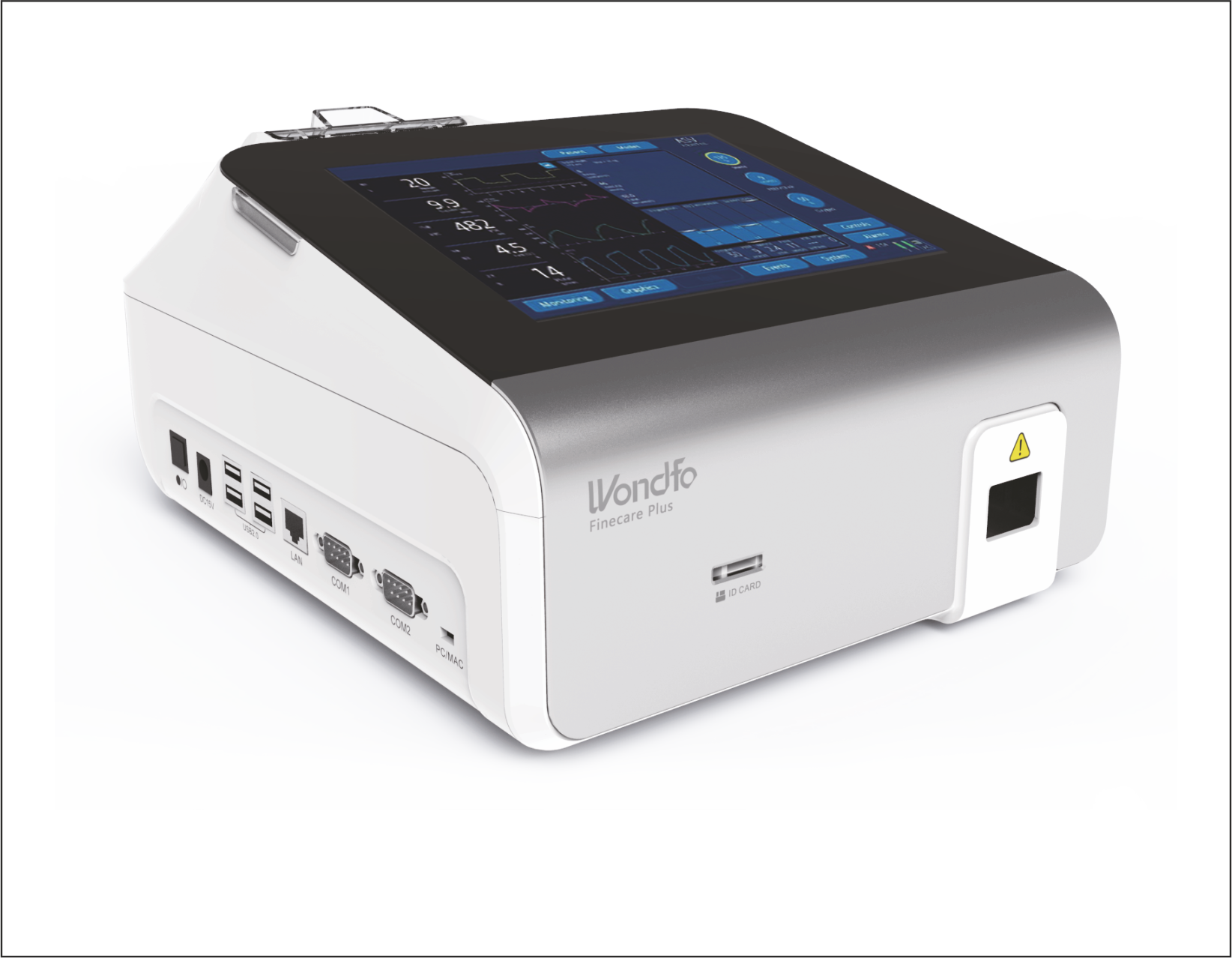

FINECARE FIA Meter II Plus SE (FS114)
Overview
The Wondfo Finecare II Plus SE (FS114) is a compact and advanced fluorescence immunoassay analyzer designed for rapid, reliable, and decentralized diagnostics. It empowers healthcare providers with accurate results at the point of care, supporting early detection and monitoring of critical diseases.
Description:
The FS114 is a semi-automated POCT analyzer utilizing fluorescence immunoassay technology to deliver high-sensitivity diagnostic results within minutes. It supports a broad test menu including cardiac markers, diabetes, thyroid function, inflammation, fertility, tumor markers, and infectious diseases.
Engineered for versatility, the system supports multiple sample types such as whole blood, serum, plasma, and urine, making it ideal for hospitals, clinics, and outreach healthcare settings. Results are available in as little as 3–15 minutes, enabling faster clinical decision-making.
With features like a touchscreen interface, built-in thermal printer, LIS/HIS connectivity, and a rechargeable battery, the FS114 ensures seamless operation even in resource-limited environments. Its portability and ease of use make it highly suitable for decentralized and rural healthcare delivery.
Methodology
Fluorescence Immunoassay
Calibration
In built ID chip Calibration
Excitation light source
LED
Excitation spectrum Center
wavelength λ0 = 470nm
Absorption spectrum Center
wavelength λ1 = 525nm
Specimen Type
Whole blood, serum, plasma or urine
Operation system
Linux, English input method, customized intelligent management module
Detector
Photodiode
Storage Capacity
Up to 50,000 test results
Interface port
RS 232 / USB / Ethernet network
Miscellaneous
Thermal printer,
8" LCD touch screen
English Language interface available
Battery
Rechargeable Lithium Battery
Size (W×D×H)
278 × 239 × 148 mm
Weight
About 3.3 kg
| Category | Available Assays |
|---|---|
Infections Disease
|
Dengue NS1 Ag |
Thyroid Function
|
TSH T3 T4 fT3 fT4 |
Fertility
|
β-HCG LH (Leutenizing Hormone) FSH Progesterone Prolactin E2 (Estradiol) Testosterone AMH |
Cardiac Markers
|
NT-proBNP Troponin I Myoglobin CK-MB 3 in 1 (cTn I/Myo/CK-MB) BNP hsCRP One Step cTnT |
Thrombus Markers
|
D-Dimer One step D-Dimer |
Inflammation
|
PCT CRP (hsCRP+CRP) IL-6 |
Tumor Markers
|
AFP PSA f-PSA CEA |
Allergy
|
Total IgE |
Anemia Markers
|
Ferritin |
