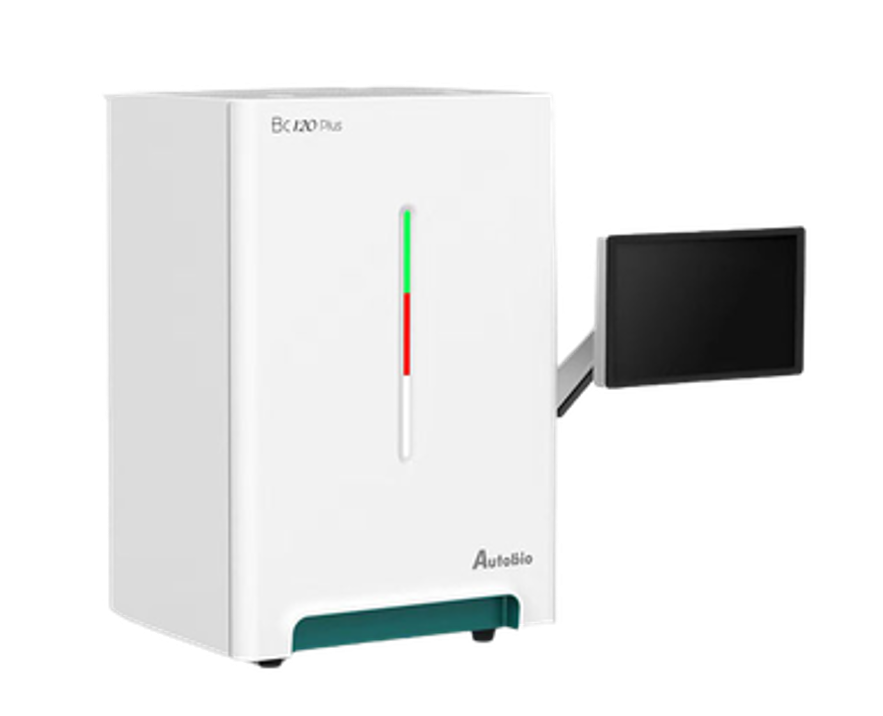

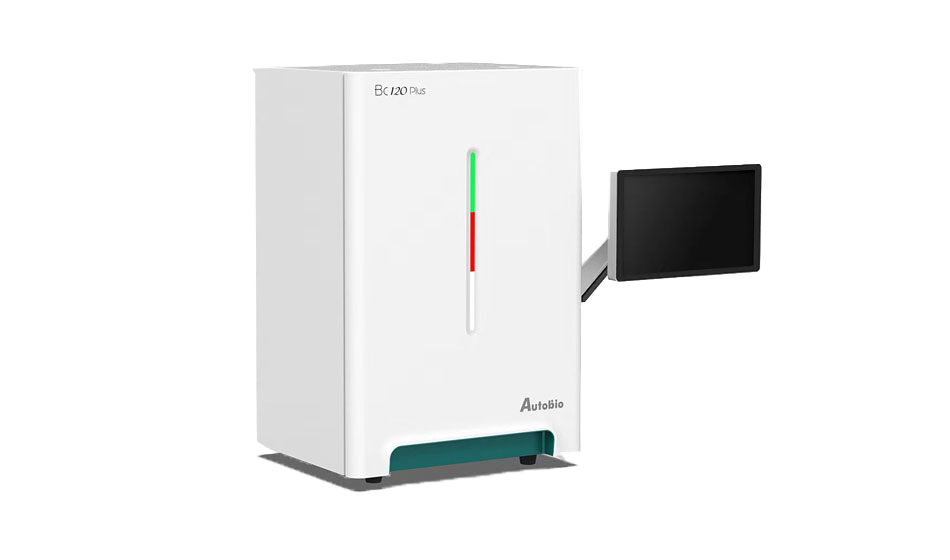

Microbiology BC120 Biochemistry Analyzer

Autobio automated blood culture system adopts advanced non-invasive and visualization technology. With a unique optical detection system, it enables full automation of blood culture testing. Its stable temperature control system and reliable vibrating module significantly shorten the detection time for positive results and reduce the false-positive rate.

Key Features
  • Flexible Configuration & High Capacity
  • High-Sensitivity Detection System
  • Intelligent Algorithm for Faster Results
  • Comprehensive Data Management & Connectivity
  • Streamlined Workflow & User-Friendly Operation
    • 4.5

    Specification

    Category Specification Details
    System Overview Autobio automated blood culture system adopts advanced non-invasive and visualization technology. A unique optical detection system enables full automation of blood culture testing. The stable temperature control and reliable vibrating module significantly shorten positive result detection time and reduce false-positive rates.
    Features
    • Variety of culture bottles including standard, resin, and pediatric types.
    • Special selected V and X factors added to improve fastidious bacteria detection.
    • Addition of Macroporous resin and cation resin ensures antibiotic neutralization.
    • Vacuum quantitative blood collection supported.
    • Double bar-code management for traceability of analysis.
    • High-strength plastic bottle material for reliable bio-safety.
    • Minimum positive sample detection time: 3 hours.
    • Reagents valid for up to 12 months at room temperature.
    Control System
    • High-configuration control system for convenient data storage and analysis.
    • LIS connectivity available.
    • Analysis management software available.
    Mainframe
    • 2 incubator drawers with 60 cells each (120-cell capacity).
    • Supports cascade connection.
    • High-precision temperature control system maintains constant bottle temperature.
    • Continuous detection every 10 minutes.
    • Minimum positive sample detection time: 3 hours.
    • Size (W×D×H): 510 × 685 × 590 mm
    • Weight: approx. 120 kg
    • Power Supply: AC 100–240 V, 800 VA
    Software
    • Non-invasive detection reduces pollution & ensures accurate results.

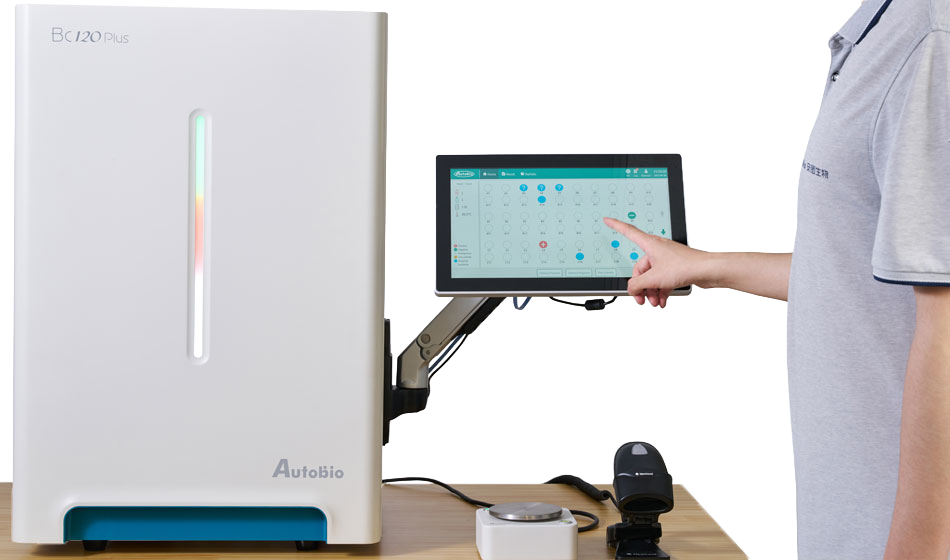

    • 3 test steps: click → scan → load bottle.
    • 3 detection result modes: anonymous, deferred, and continuous.
    • 3 alarm methods: voice, light, electricity.
    • Visualized and graphical interface for bacterial growth curves.
    • Statistical analysis of workload and culture results.
    Result Judgement Modes 3 Modes:
    1. Acceleration mode (initial stage) – Shortens bacterial detection time.
    2. Efficiency mode (medium stage) – Reduces error rate.
    3. Threshold judgement mode – Supports deferred entry function.
    Blood Culture Bottles
    • Standard Aerobic/Anaerobic bottle
    • Resin Aerobic/Anaerobic bottle
    • Standard Pediatric bottle
    • Resin Pediatric bottle
    • Mycobacteria bottle
    Antibiotic Adsorption Active carbon is commonly used for antibiotic adsorption. BC120 uses selected resin for better adsorption efficiency. Comparison shows resin has superior antibiotic adsorption across: Vancomycin, Piperacillin/Tazobactam, Imipenem, Teicoplanin, Ampicillin.
    Throughput 120 independent holes, Expandable upto 5 Modulers
    Sample Volume Adult 8 - 10ml, Pediatric 1 -5ml
    Blood Volume detection Available
    Test Pack Size 20 Bottles/ Pack, 50Bottles/Pack
    Shelf-life >10 months
    Memory ≥ 100,000 pieces, Extensible
    Bar-code Reader External
    Computer Tablet
    Printer External
    Report Test results with R-curve graph
    LIS/HIS connection Available
    Size(LxDxH) 49cm x 43cm x 74cm
    Weight 82kg
    Input 100~240VAC / 50~60Hz
    Power Consumption 300 VA
